Name: Codipro Female Double Swivel Ring - UNC 1/2&quot; - 13
SKU: Codipro WBB1638067
Availability: InStock

Sale!

Original price was: $154.95.Current price is: $95.99.

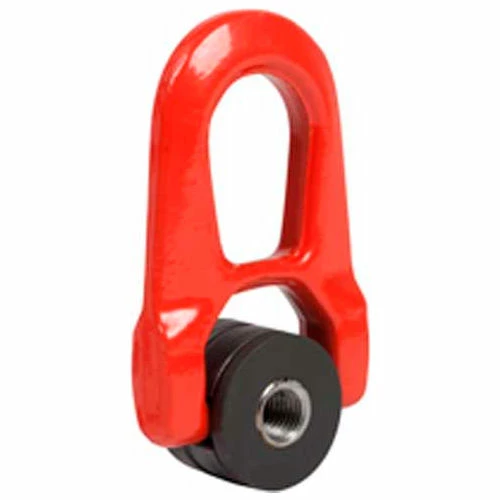

Codipro Female Double Swivel Ring

Safety factor 5
Steel with high resistance, class > 8
Double articulation allows it to line up perfectly with the sling
Allows the use of the existing fixation point (axis or overlaying threaded rod)
The female double swivel ring FE.DSR can be used with threaded parts in different lengths.
Permits the hook to move parallel to the supporting face of the ring being drawn at 90°

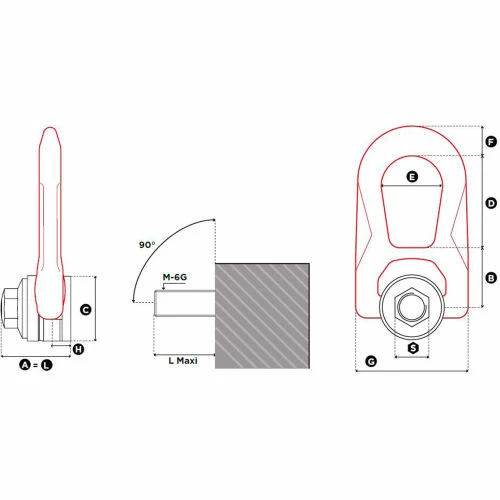

Dimension F	17
Diameter	UNC 1/2 – 13 in
Manufacturers Part Number	FE.DSR U050
Description	Female Double Swivel Ring – UNC 1/2" – 13
Material	Forged Steel
Dimension E	38
Dimension D	54
Working Load Limit	2200 lbs
Dimension G	76 in
Weight	1.98 lbs
Dimension B	42
Dimension S	20
Dimension A	45
Dimension H	13
Dimension C	45 in
Dimension L1	45 in
Brand	Codipro
