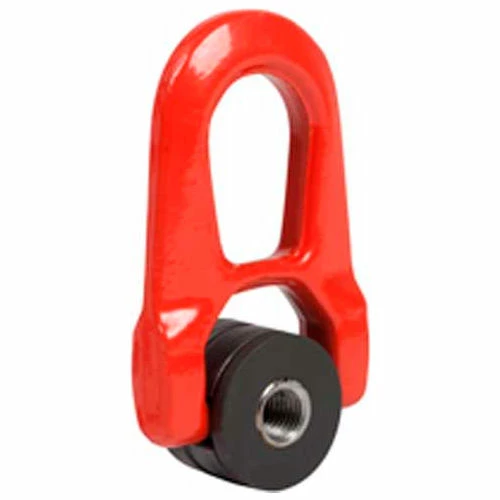

Codipro Female Double Swivel Ring
- Safety factor 5
- Steel with high resistance, class > 8
- Double articulation allows it to line up perfectly with the sling
- Allows the use of the existing fixation point (axis or overlaying threaded rod)
- The female double swivel ring FE.DSR can be used with threaded parts in different lengths.
- Permits the hook to move parallel to the supporting face of the ring being drawn at 90°

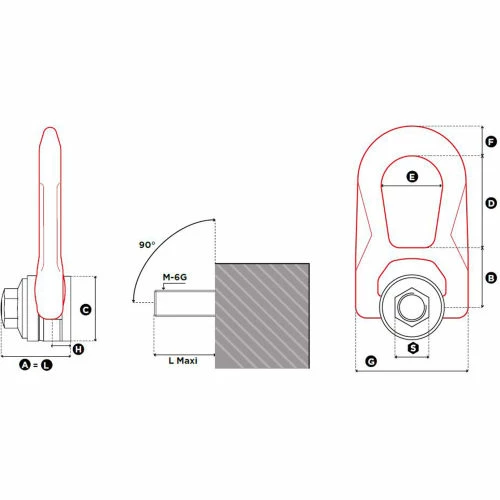

| Dimension F | 17 |
|---|---|
| Diameter | UNC 1/4 – 20 in |
| Manufacturers Part Number | FE.DSR U025 |
| Description | Female Double Swivel Ring – UNC 1/4" – 20 |
| Material | Forged Steel |
| Dimension E | 38 |
| Dimension D | 54 |
| Working Load Limit | 330 lbs |
| Dimension G | 76 in |
| Weight | 1.98 lbs |
| Dimension B | 42 |
| Dimension S | 20 |
| Dimension A | 45 |
| Dimension H | 13 |
| Dimension C | 45 in |
| Dimension L1 | 45 in |
| Brand | Codipro |
