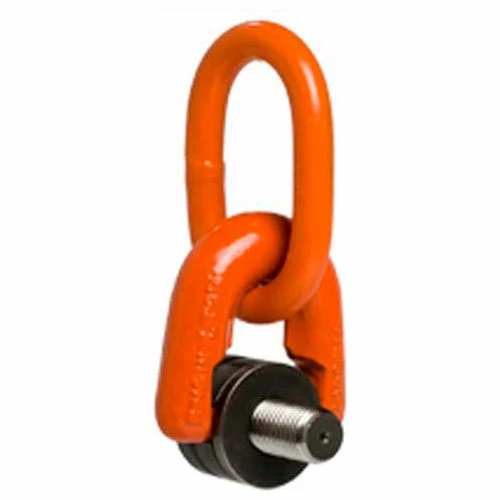

Codipro Triple Swivel Ring – M 20 (x2.5)

Sale!

Codipro Triple Swivel Ring - M 20 (x2.5)

Codipro Triple Swivel Ring - M 20 (x2.5) - Image 2

Original price was: $154.95.Current price is: $97.99.

SKU: Codipro WBB1638068 Categories: Cranes & Hoists, Hoist Rings, Parts & Accessories Tags: Codipro, Material Handling, Triple Swivel Ring - M 20 (x2.5), TSR M 20, Without Centring

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

Codipro Triple Swivel Ring

Safety factor 4 or 5, according to the proposed WLL
Steel of the class > 8
Triple articulation allows it to line up perfectly with the sling
Two ways of tightening: either by open-ended spanner or by Allen key

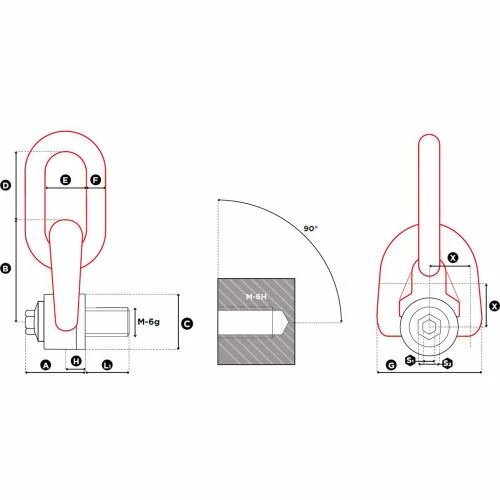

Dimension S2	20
Dimension S1	8
Manufacturers Part Number	TSR M 20
Description	Triple Swivel Ring – M 20 (x2.5)
Centring	Without Centring
Dimension E	37
Dimension D	56
Working Load Limit	5500 lbs
Diameter	M 20 (x2.5)
Dimension F	14
Dimension G	79 in
Dimension B	76
Dimension A	45
Dimension H	13
Dimension C	45 in
Dimension L1	30 in
Weight	2.65 lbs
Brand	Codipro
