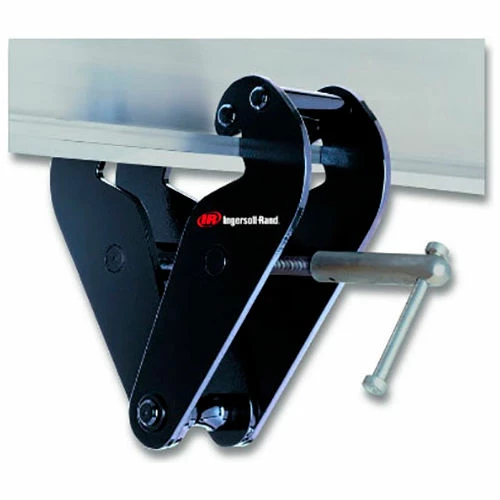

Beam Clamps provide a temporary or permanent mount to a wide range of tapered or flat beams. They are the ideal rigging device for lifting, pulling or suspending loads. These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7. Quick and simple installation is achieved without tools. Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom. The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.
Features:
- Quick installation by hand
- Low-headroom design adjusts to fit a wide range of flat or tapered beams
- Meets ASME B30.16 for use with powered or manual hoists
- Each unit is serialized, supplied with a test certificate and manual
- Metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton
| Weight | 7 lbs |
|---|---|
| Color Family | Black |
| Brand | Ingersoll Rand |
| Manufacturers Part Number | BC-2 |
| UPC | 00663023010915 |
| Operation | Manual |
| Material | Steel |
| Series | BC Series |
| Type | Beam Clamp |
| Weight Capacity | 4,400 lbs |
| Assembly Required | Assembled |
| Width | 4 in |
| Length | 17-1/2 in |
| Height | 8-1/2 in |
| Flange Width | 3 to 10-1/2 in |
| Beam Width | 3 to 10-3/16 in |
| Head Room | 4 to 5-15/16 in |
| Warranty | 1 yr |
