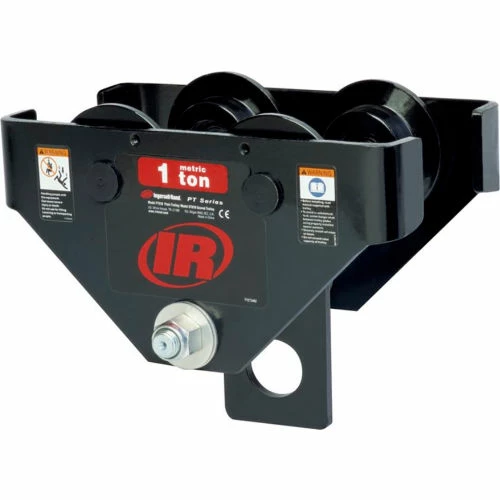

Ingersoll Rand PT Beam Trolly 2200 Lb. Capacity 3 to 8 Flange Width

plain trolley rated for both manual or powered hoists, with the versatility to fit most types of beams and compatibility to all hoist brands. The 5:1 design factor allows the PT Series to be used with both manual or powered hoists. Meets pertinent U.S. (ASME/ANSI and CMAA), Canadian and European standards.
Features:

• The side plates, including the rail sweeps/drop stops, are made of cold formed steel for strength, durability and even load distribution.
• The wheel axles are ‘rivet-locked’ in place so they will not come loose. They are NOT knurled, welded, or modified bolts.
• The wheels are cast iron. The ‘universal’ tread fits either flat or tapered beams.
• Wheels run on sealed, ‘lubed-for-life’ ball bearings. Smoother rolling with less effort and…less maintenance.
• Wide hanger shaft assemblies allow the PT Series trolley to fit almost any I-Beam, H-Beam or patented track beam up to 8.06 in./205 mm width.
• PT Series trolley hanger shafts are designed to accept all hoist brands. The hanger shaft has a ‘squared out’ recess to accept round or squared hook shapes.
• The trolleys are painted black for universal coordination.
• Shaft extension kits allow standard trolleys to fit almost any S-beam or patented track beam – flange adjustment 8′-13′. Please click on ‘catalog section’ for details.
