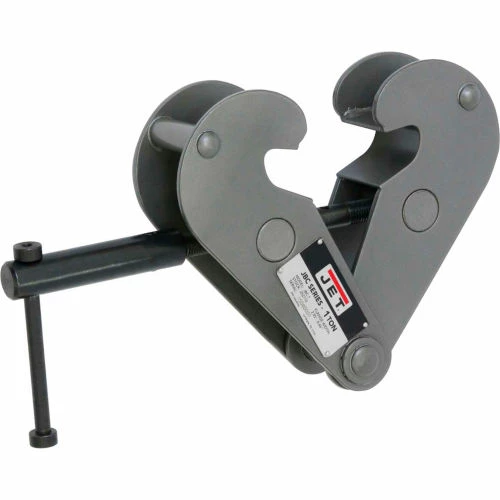

JET JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. JET Beam clamps comply with ANSI / ASME standards. Comes with a 2 Year Warranty.
Durability
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
- Used for quick mounting of a hoist or for lifting a broad range of beams up to 10-5/8 inches wide for increased versatility
Standards
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Certification- Load tested to 125% of capacity with certificate
| Max Flange Thickness | 8.6 in |
|---|---|
| Series | JBC |
| Warranty | 2 yr |
| Brand | JET |
| Manufacturers Part Number | 252710 |
| Package Quantity | 1 |
| UPC | 662755102752 |
| Operation | Manual |
| Material | Steel |
| Color Family | White |
| Weight | 9.7 lbs |
| Type | Beam Clamp |
| Assembly Required | Assembled |
| Width | 4-3/8 in |
| Length | 16-4/5 in |
| Height | 7-1/8 in |
| Flange Width | 3 to 8-2/3 in |
| Beam Width | 2-31/32 to 8-5/8 in |
| Weight Capacity | 2,200 lbs |
| Certifications | ANSI / ASME B30.17 and B30.20 |
