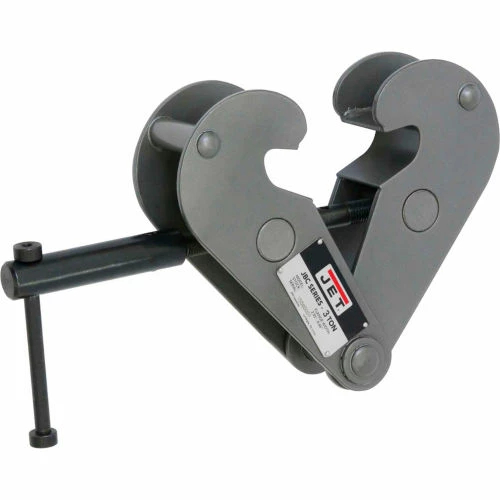

JET JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. JET Beam clamps comply with ANSI / ASME standards. Comes with a 2 Year Warranty.
Durability
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
- Used for quick mounting of a hoist or for lifting a broad range of beams up to 10-5/8 inches wide for increased versatility
Standards
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Certification- Load tested to 125% of capacity with certificate
| Max Flange Thickness | 9.6 in |
|---|---|
| Series | JBC |
| Warranty | 2 yr |
| Brand | JET |
| Manufacturers Part Number | 252730 |
| Package Quantity | 1 |
| UPC | 662755102776 |
| Operation | Manual |
| Material | Steel |
| Color Family | White |
| Weight | 23.2 lbs |
| Type | Beam Clamp |
| Assembly Required | Assembled |
| Width | 5-13/16 in |
| Length | 19 in |
| Height | 9-1/2 in |
| Flange Width | 5 to 10-5/8 in |
| Beam Width | 3-15/16 to 9-5/8 in |
| Weight Capacity | 6,600 lbs |
| Certifications | ANSI / ASME B30.17 and B30.20 |
