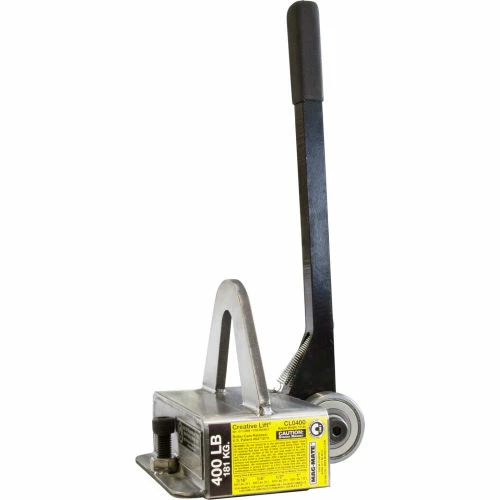

Name: MAG-MATE&#174; Creative Lift&#174; CL0400 Lifting Magnet 400 Lbs. Capacity
SKU: Mag-Mate WBB2263893
Availability: InStock

Sale!

MAG-MATE® Creative Lift® CL0400 Lifting Magnet 400 Lbs. Capacity

MAG-MATE® Creative Lift® CL0400 Lifting Magnet 400 Lbs. Capacity - Image 2

MAG-MATE® Creative Lift® CL0400 Lifting Magnet 400 Lbs. Capacity - Image 3

Original price was: $542.00.Current price is: $98.99.

SKU: Mag-Mate WBB2263893 Categories: Cranes & Hoists, Lifting Magnets, Parts & Accessories Tags: 1, CL0400, Lifting Magnet, Mag-Mate, Material Handling, Silver, Stainless Steel/Ceramic, Unassembled

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

MAG-MATE® Creative Lift® CL0400 Lifting Magnet 400 Lbs. Capacity

Permanent lift magnets are ideal for handling steel plates, die castings, forgings or other steel products. They eleiminate the need for clamping devices, slings or chains. No need to lift the steel up to wrap a chain, sling or wire rope around it. One person can perform the operation previously calling for two or more people.
Features:

Permanent Ceramic Magnet
Patented Non-Marring Roller Cam Release
Spring Return Handle
Less Torque Required To Release Load
“Jack Screw” Secondary Release
RFID Enabled
Durable Stainless Steel Casing
3:1 Design Factor
Large Lift Lug
Heat Resistant up to 300⁰F (148⁰C)
USA M.A.D.E.
Magnet Size: 4″L x 6-1/2″W x 2-1/2″H
4 Poles

Base Diameter Or Dimension	4 x 6-1/2 in
Assembly Required	Unassembled
Warranty	1 yr
Brand	Mag-Mate
Manufacturers Part Number	CL0400
Package Quantity	1
Material	Stainless Steel/Ceramic
Style	Lifting Magnet
Color Family	Silver
Width	7-1/4 in
Weight	21 lbs
Length	6-3/4 in
Height	7-3/4 in
Min Thickness	3/16 in
Weight Capacity	400 lbs
Magnet Size	4" x 6-1/2" x 2-1/2"
Handle Length	16 in
Bail Opening	2-1/4 x 3 in
Certifications	ASME B30.20 BTH-1 Design Category B Service Class 3
