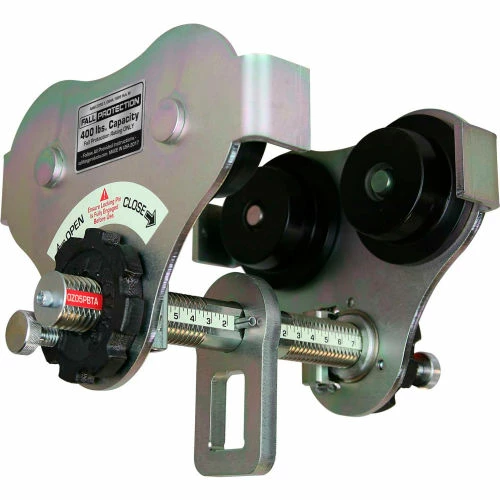

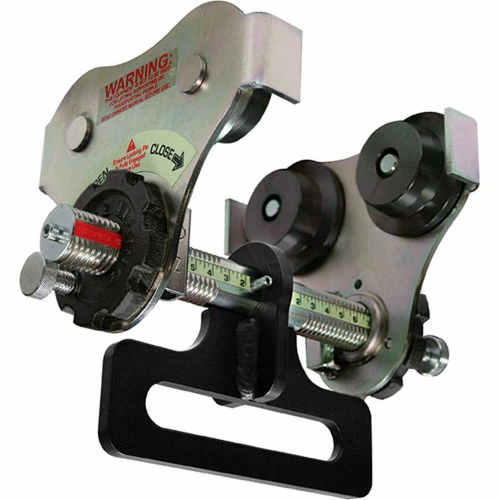

OZ Lifting OZ05PBTA-12 Geared Beam Trolley W/ 12″ Rod 1/2 Ton Capacity

OZ Lifting OZ05PBTA-12 Push Beam Trolley with 12″ Rod 1/2 Ton Capacity. Fastest adjusting trolley requiring no tools to install

Features:

Lightweight robust construction
ROHS compliant zinc plated finish

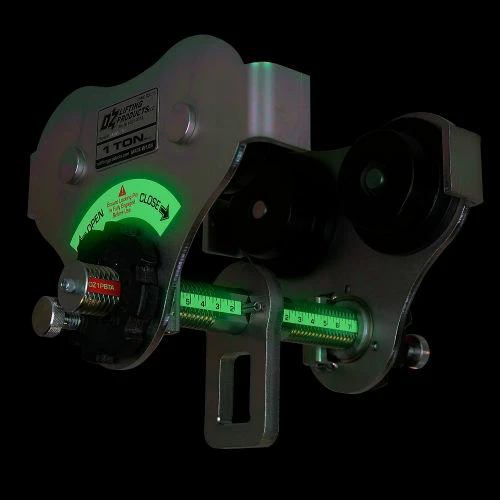

Glow in the dark decals
Fits to most I, S, and W-Beams
Durable baked enamel provides protection
Precision ball bearing trolley wheels
Side plates protect trolley wheels
Anti-drop plate
Stainless steel ID tag
Individual test certificate and serial number
Made in USA

Weight	19 lbs
Dimension H	1.5 in
Package Quantity	1
Color Family	Silver
Type	Standard Trolley
Brand	OZ Lifting Products
Manufacturers Part Number	OZ05PBTA-12
Operation	Manual
Material	Steel
Assembly Required	Assembled
Width	8-1/3 in
Length	17 in

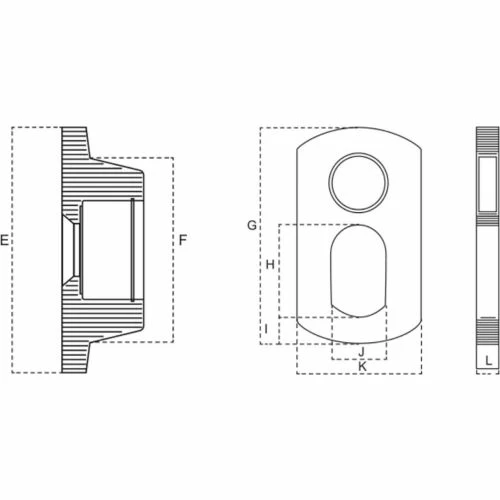

Dimension G	4.38 in
Height	8-1/2 in
Head Room	5 in
Dimension C	8.5 in
Dimension K	2.25 in
Bail Opening	1.5 x 1 in
Max Flange Thickness	12 in
Dimension F	2.38 in
Dimension E	3.25 in
Dimension D	5 in
Min Radius Curve	2.75 ft
Dimension J	1 in
Dimension L	.38 in
Dimension B	8.3 in
Flange Width	12 in
Beam Width	12 in

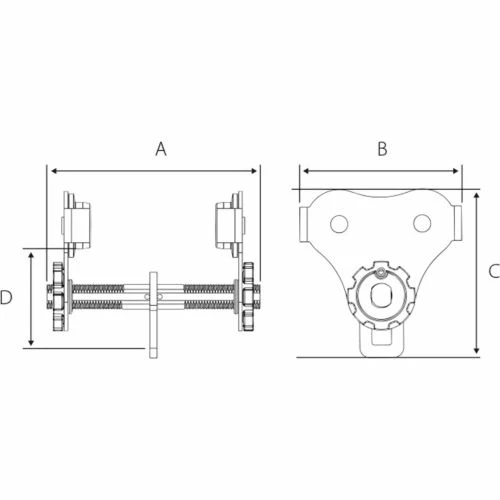

Dimension A	12.25 in
Weight Capacity	1,000 lbs
Warranty	10 yr
