Name: OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity
SKU: OZ Lifting Products WBB1583484
Availability: InStock

Sale!

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 2

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 3

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 4

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 5

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 6

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 7

OZ Lifting Products OZ Lifting OZ1PBT Push Beam Trolley 1 Ton Capacity - Image 8

Original price was: $158.95.Current price is: $91.99.

SKU: OZ Lifting Products WBB1583484 Categories: Cranes & Hoists, Hoists & Trolleys, Trolleys Tags: Assembled, Manual, Material Handling, OZ Lifting Products, OZ1PBT, Standard Trolley, Steel

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

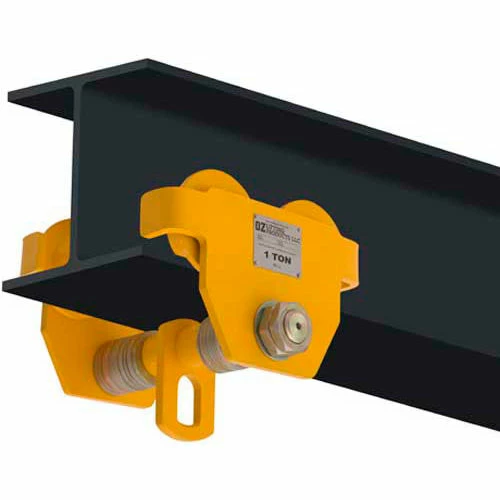

OZ Lifting Push Beam Trolley, 1 Ton Capacity

PUSH BEAM TROLLEY – This lightweight robust all steel Trolley features super quick adjustment, precision ball bearing trolley wheels, and anti-drop plate with a durable baked enamel finish. It carries its own Stainless Steel I.D. tag and comes with an individual test certificate and serial number. The Push Beam Trolley continues to be a top seller in the lifting and rigging industry.

FEATURES and BENEFITS

Lightweight robust construction
Fits to most I, S, and W-Beams
Durable baked enamel paint protection
Precision ball bearing trolley wheels
Anti-drop plate
Stainless steel ID tag
Individual test certificate & serial number

Weight	32 lbs
Dimension H	1.97 in
Package Quantity	1
Color Family	Yellow
Type	Standard Trolley
Brand	OZ Lifting Products
Manufacturers Part Number	OZ1PBT
Operation	Manual
Material	Steel
Assembly Required	Assembled
Width	10-1/4 in
Length	12-11/16 in
Dimension G	4.65 in
Height	9-7/16 in
Head Room	5-1/3 in
Dimension C	9.41 in
Dimension K	2.68 in

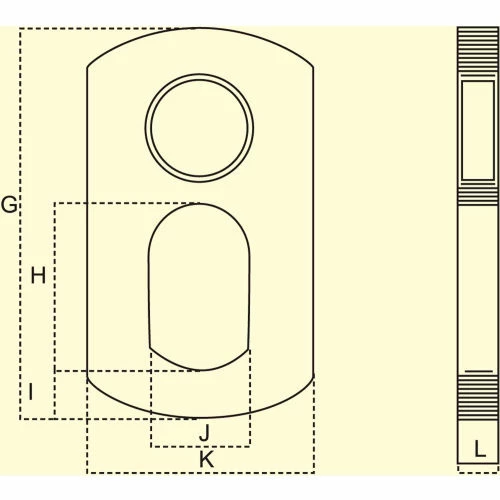

Bail Opening	1.97 x 1.21 in

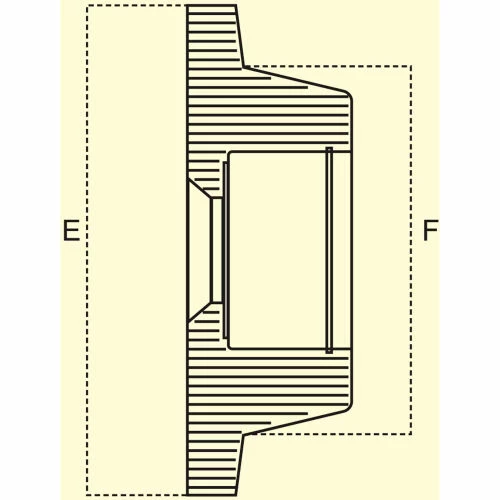

Wheel Diameter	4.02 in
Dimension F	2.96 in
Dimension E	4.02 in
Dimension D	5.31 in
Min Radius Curve	3.28 ft
Dimension I	0.6 in
Dimension J	1.21 in
Dimension L	0.48 in

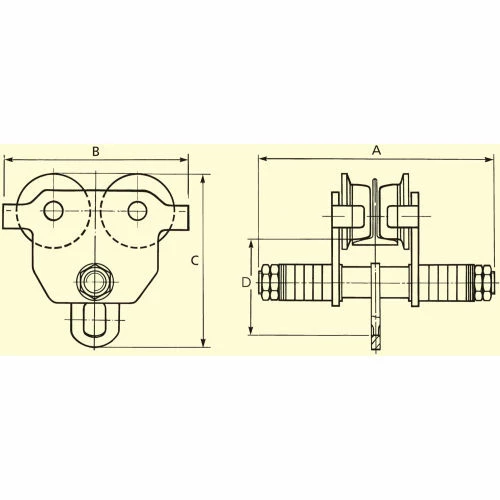

Dimension B	10.24 in
Flange Width	2-1/2 to 8 in
Dimension A	12.69 in
Weight Capacity	2,000 lbs
Warranty	5 yr
