Name: RUD 1.35 Ton, 1/2&quot;-13 UNC, Pivot, Swivel Load Ring
SKU: RUD WBB2795296
Availability: InStock

Sale!

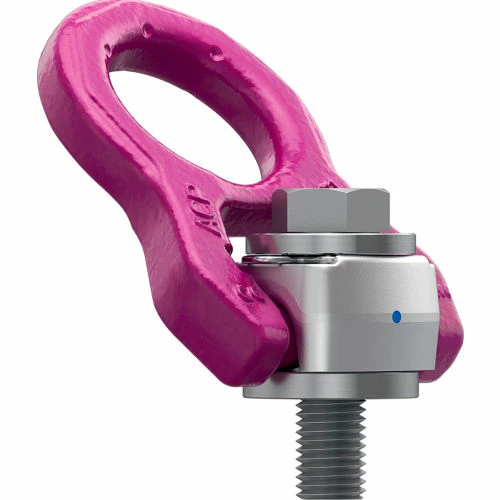

RUD 1.35 Ton, 1/2"-13 UNC, Pivot, Swivel Load Ring

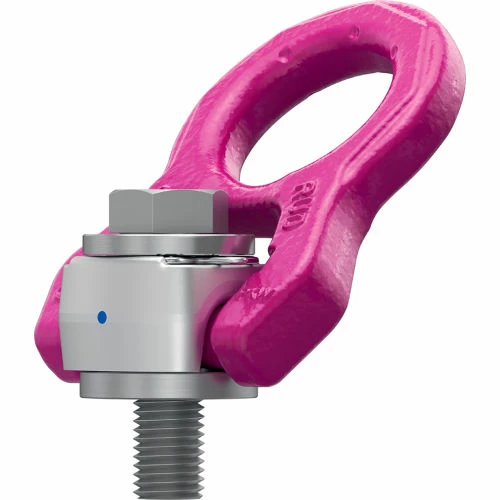

RUD 1.35 Ton, 1/2"-13 UNC, Pivot, Swivel Load Ring - Image 2

Original price was: $161.95.Current price is: $94.99.

SKU: RUD WBB2795296 Categories: Cranes & Hoists, Hoist Rings, Parts & Accessories Tags: 7909417, Assembled, Bolt on, Material Handling, Pink, RUD, Steel

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

Lifting points rotates 360 degrees. Pivoting 180 degrees. Unique RUD spring mechanism. Swivel joint in the lifting ring axis. Round lifting ring (no kinking possible). Rotating combination head with RUD ICE-Bolt. Wear indicators. Unsymmetrical application of force. Available in Metric or UNC thread. Maximum operation temperature range WITHOUT reduction of WLL -40 to 100 degree Celsius. MAximum operation temperature WITH reduction of WLL 350 degree Celsius. Made In The USA.

Dimension T	3-1/4 in
Dimension G	1-1/8 in
Warranty	1
Package Quantity	1
Hook Type	Bolt on
Color Family	Pink
Brand	RUD
Manufacturers Part Number	7909417
Material	Steel
Assembly Required	Assembled
Length	4 in
Working Load Limit	2380 lbs
Width	3 in
Dimension N	5/16"
Bolt Size	.5-13UNC in
Weight	0.86 lbs
Height	1-1/2 in
Dimension M	1/2"-13UNC
Dimension H	2-1/8"
Dimension C	7/16 in
Bail Opening	1.5 in
Dimension F	23/32"
Dimension E	1-3/16 in
Dimension D	1-1/2 in
Dimension I	3/4 in
Dimension L	1-13/16"
Dimension B	7/16 in
Weight Capacity	2380
Dimension K	2-9/32"
Certifications	MD 2006/42/EC
