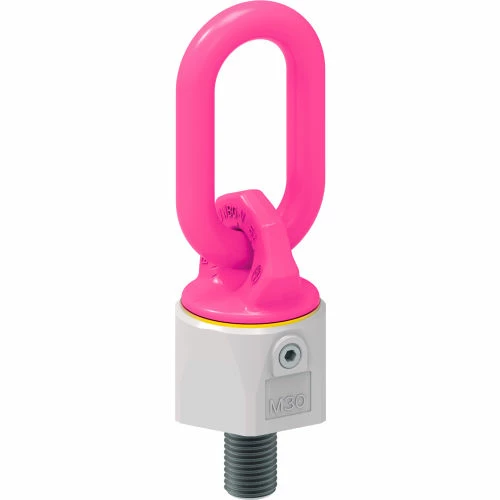

RUD Hoist Ring, 180 Pivot, 11,000 lb. Load Capacity

RUD Hoist Ring, 180 Pivot, 11,000 lb. Load Capacity - Image 2

Original price was: $598.00.Current price is: $97.99.

SKU: RUD WBB2795284 Categories: Cranes & Hoists, Hoist Rings, Parts & Accessories Tags: 1, 7991096, Assembled, Material Handling, Pink, RUD, Steel

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

Ball bearing for shock-free rotating and turning with less friction. Lifting points pivots 360 degrees. Suspension ring with enlarged pivoting area. Available as Metric or UNC Thread. Clear marking of the minimum WLL for all loading directions. Patented markings for easy determination for withdraw of service as well as the determination of the load angle. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Variable bolt lengths available for tapped or through holes. Non-removable special bolt. Large distance between bolt-on surface and load to avoid damage. Maximum operation temperature range WITHOUT reduction of WLL -40 to 100 degree Celsius. Maximum operation temperature WITH reduction of WLL 350 degree Celsius. Made In The USA.

Dimension T	8-11/16 in
Dimension G	4-3/16 in
Warranty	1
Package Quantity	1
Color Family	Pink
Brand	RUD
Manufacturers Part Number	7991096
Material	Steel
Assembly Required	Assembled
Length	9-1/8 in
Working Load Limit	11000 lbs
Width	7-5/8 in
Bolt Size	1.25-7UNC in
Weight	11.22 lbs
Height	4-3/16 in
Dimension M	1 1/4"-7UNC
Dimension C	1-31/32 in
Bail Opening	3.531 x 1.968 in
Dimension F	1-7/8"
Dimension E	3-11/32 in
Dimension D	3-7/8 in
Dimension B	3-17/32 in
Dimension A	7/8 in
Weight Capacity	11000
Certifications	MD 2006/42/EC
