Name: RUD Powerpoint Hoist Ring, 180 Pivot, 5500 lb. Load Capacity, .875 - 9 UNC Bolt, 1-1/8&quot; Dim A Size
SKU: RUD WBB2795363
Availability: InStock

Sale!

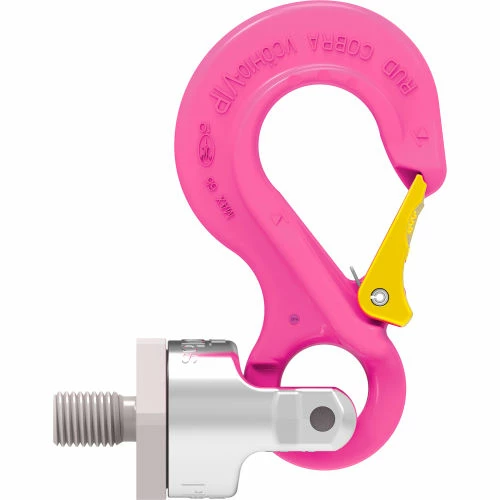

RUD Powerpoint Hoist Ring, 180 Pivot, 5500 lb. Load Capacity, .875 - 9 UNC Bolt, 1-1/8" Dim A Size

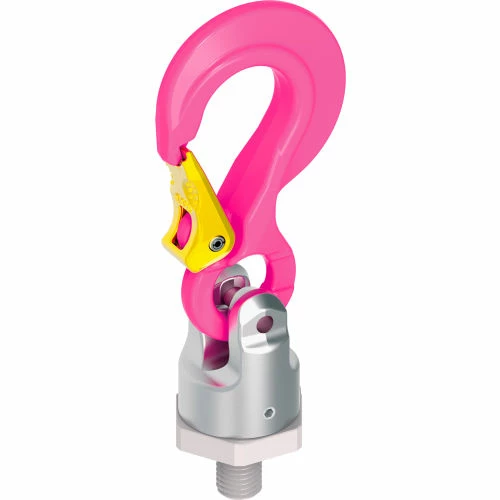

RUD Powerpoint Hoist Ring, 180 Pivot, 5500 lb. Load Capacity, .875 - 9 UNC Bolt, 1-1/8" Dim A Size - Image 2

Original price was: $325.95.Current price is: $98.99.

SKU: RUD WBB2795363 Categories: Cranes & Hoists, Hoist Rings, Parts & Accessories Tags: 7989910, Assembled, Bolt on, Material Handling, Pink, RUD, Steel

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

Universal hook connection for ring assemblies, round slings, wire ropes, hook assemblies. Double ball-bearings is the optimal solution for turning and flipping operations under full load. Lifting points rotates 360 degrees. Large distance between bolt-on surface and load to avoid damage. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Suspension ring with enlarged pivoting area. Available in Metric and UNC thread. Maximum operation temperature range WITHOUT reduction of WLL-40 to 200 Celsius. Maximum operation temperature WITH reduction of WLL up to 400 degrees Celsius. Made In The USA.

Dimension T	7-3/8 in
Width	6-5/8 in
Warranty	1
Package Quantity	1
Hook Type	Bolt on
Color Family	Pink
Brand	RUD
Manufacturers Part Number	7989910
Material	Steel
Assembly Required	Assembled
Length	6-5/16 in
Working Load Limit	5500 lbs
Dimension G	2-13/32 in
Weight	3.97 lbs
Bolt Size	.875 – 9 UNC in
Height	6-5/8 in
Dimension M	7/8"-9UNC
Dimension C	1-3/16 in
Bail Opening	1.1875 in
Dimension F	7/8"
Dimension E	2-5/32 in
Dimension D	2-13/32 in
Dimension B	5 in
Dimension A	1-1/8 in
Weight Capacity	5500
Certifications	MD 2006/42/EC, ASME B30.26
