Name: Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity
SKU: WB988006
Availability: InStock

Sale!

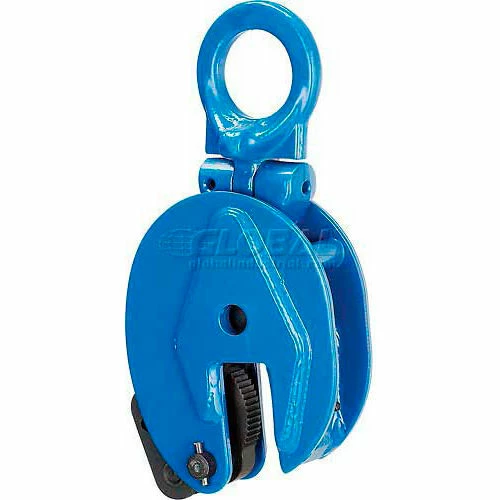

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity

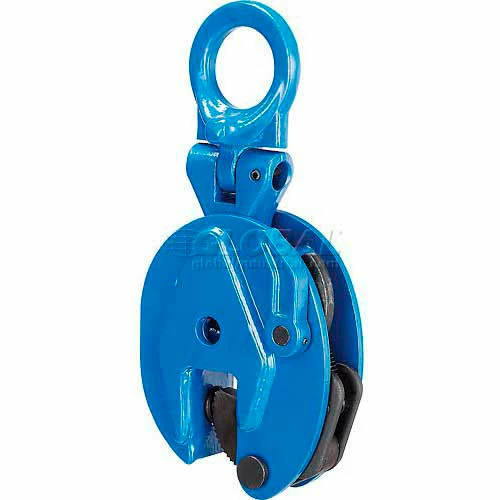

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 2

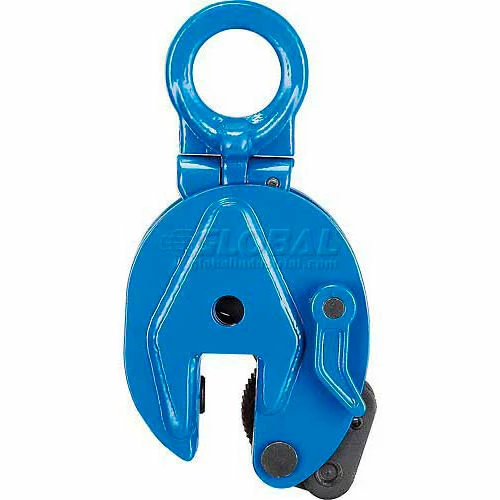

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 3

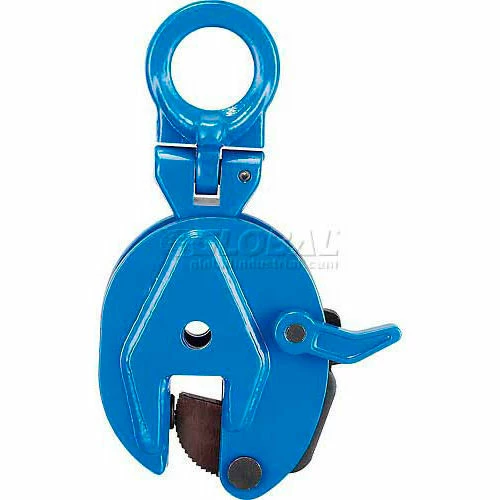

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 4

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 5

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 6

Vertical Plate Clamp Lifting Attachment 1600 Lb. Capacity - Image 7

Original price was: $89.95.Current price is: $62.97.

SKU: WB988006 Categories: Cranes & Hoists, Lifting Attachments, Parts & Accessories Tags: Assembled, Blue, ICD0.8, Material Handling, Steel, Vertical

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

VERTICAL PLATE CLAMP

Heavy-duty plate clamp is designed to vertically lift and turn plate material from all positions. Lifting clamp includes an articulating shackle for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamp features a safety mechanism that ensures the clamp does not slip when lifting force is applied or when load is lowered. Drop-forged carbon steel case offers maximum strength. Meets ASME B30.20 specifications. Note: Not designed to use on stainless steel or aluminum plates. For use only with materials with a surface hardness below HRC 30 (HB 300, Brinel 1300).

Throat Depth	1.6 in
Weight Capacity	1,600 lbs
Weight	4.4 lbs
Max Plate Thickness	0.60 in
Bail Opening	1.1 in
Assembly Required	Assembled
Type	Vertical
Material	Steel
Color Family	Blue
Manufacturers Part Number	ICD0.8
Warranty	1 yr
