Name: Vestil Vertical Plate Clamp Lifting Attachment EPC-40 4000 Lb. Capacity
SKU: Vestil WB251514
Availability: InStock

Sale!

Vestil Vertical Plate Clamp Lifting Attachment EPC-40 4000 Lb. Capacity

Original price was: $330.95.Current price is: $95.99.

SKU: Vestil WB251514 Categories: Cranes & Hoists, Lifting Attachments, Parts & Accessories Tags: Assembled, Blue, EPC-40, Material Handling, Steel, Vertical, Vestil

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

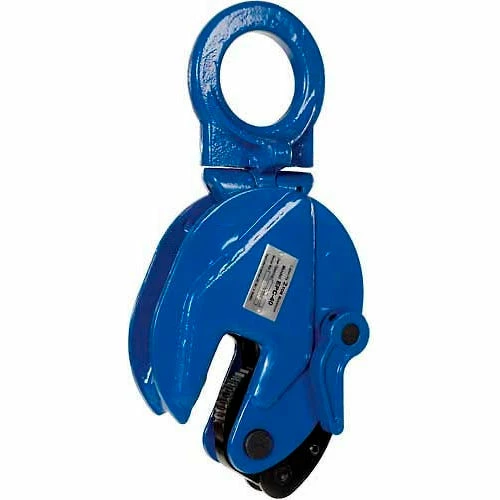

VERTICAL PLATE CLAMP

Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.

Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Throat Depth	2.9 in
Weight	20 lbs
Max Plate Thickness	1.00 in
Bail Opening	2.3 in
Weight Capacity	4,000 lbs
Assembly Required	Assembled
Type	Vertical
Color Family	Blue
Material	Steel
Manufacturers Part Number	EPC-40
Brand	Vestil
