Name: Vestil Vertical Plate Clamp with Chain Lifting Attachment CPC-10 1000 Lb. Cap.
SKU: Vestil WB251516
Availability: InStock

Sale!

Vestil Vertical Plate Clamp with Chain Lifting Attachment CPC-10 1000 Lb. Cap.

Original price was: $212.95.Current price is: $95.99.

SKU: Vestil WB251516 Categories: Cranes & Hoists, Lifting Attachments, Parts & Accessories Tags: Assembled, Blue, CPC-10, Material Handling, Plate Clamp, Steel, Vestil

Uncompromising quality, every time.
Get the quality you deserve, for less.
Top Quality Products
Safe and Secure Shopping

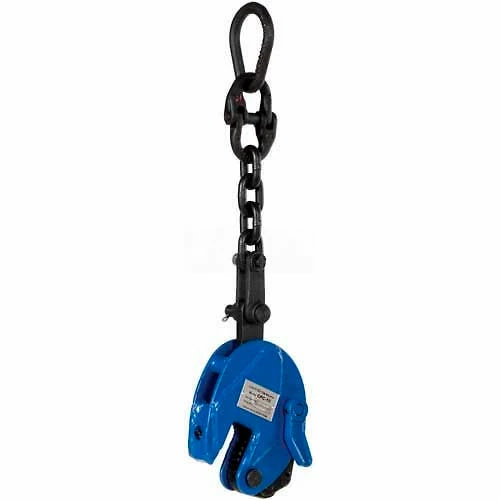

Vertical Plate Clamp with Chain Lifting Attachment 1000 Lb. Capacity

Made of steel for long lasting durability. Easily lift plate material straight up in vertical positions. Lifting eye and chain provide greater versatility. Meets ASME B30.20 specifications. Color finish is Blue. Capacity is 1,000 lbs. Max plate thickness is0.6″. Throat depth is 1-1/2″. Bail opening is 2-1/4″.

Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Throat Depth	1.5 in
Weight	9 lbs
Max Plate Thickness	0.6 in
Bail Opening	2.25 in
Weight Capacity	1,000 lbs
Assembly Required	Assembled
Type	Plate Clamp
Color Family	Blue
Material	Steel
Manufacturers Part Number	CPC-10
Brand	Vestil
